Product Display

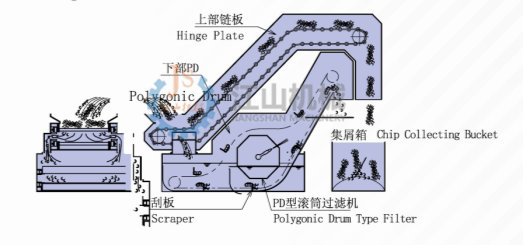

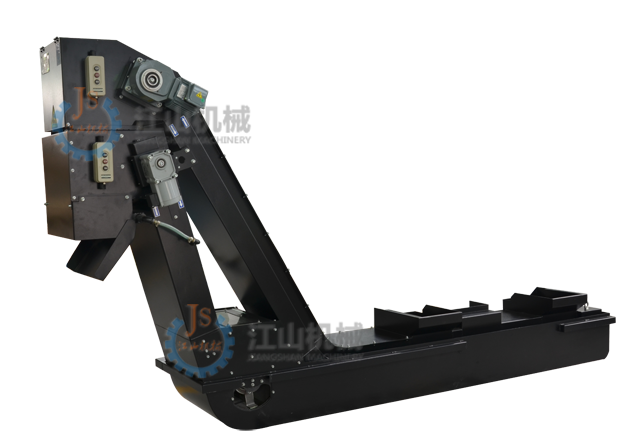

PDM filter backwash type chain plate
PDM filter backwash type chain plate
●Suitable for chip handling in the case of long chips and fine chips
●Filter the coolant with a 200 mesh filter polygonal drum filter
●Continuous filtration with automatic cleaning mechanism for backwashing coolant

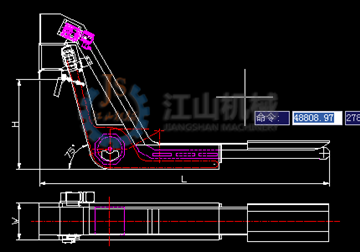

Size of each part
    W 400, 600, 800
    H 600 or more
    L3 280 or more
    A W+250 or more
    B 107 or more
    C 1450 or more

Performance (upper chip conveyor)
Geared Motor 0.2KW  4P  AC 220/380V
Chain C2052HP pitch 31.75mm
Conveying Speed When the motor power is 0.2KW
1.0m/min[50Hz], 1.2m/min [60Hz]
Conveying Capacity 0.2KW, W=400 hours  0.32m3/h [50Hz]
                                0.4m3/h [60Hz]
Safety Device Torque limiter + proximity switch
Torque limiter+approaching switch
Scrap Requirements Long swarf (50mm or more)
Long chips(over 50mm)

Performance (lower filter)
 Geared Motor 40W 4P AC 220/380V
 Chain C2050H pitch 31.75mm
 Conveying Rate 1 .1m/min [50Hz],1 .4/min[60Hz]
Conveying Capacity W=600 hours 0.07m3/h
Scrap Requirements Little non-magnetic scrap (less than 30mm)
Filter Screen 200目  ( 200 u m )
Optional Device
 140Umin
40L/min
0.1MPa or more
W=400		 210L/min
60L/min
0.1MPa or more
W=600		 280Umin
80L/min
0.1MPa or more
W=800
Optional Device Electric control box,coolant pump,nilometer.oil-water separator
Pre：Magnetic separator
Next：Drum filter type scraper type + high pressure water tank device
